Windows Visible Intercom Camera

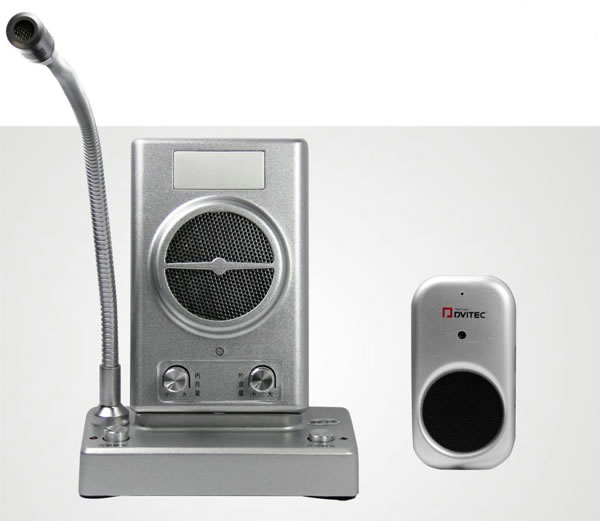

This windows visible intercom camera is an automatic bi-directional talkback. With the ultrathin external auxiliary unit, the product has small volume and attractive appearance. The outer microphone is mounted in the auxiliary unit, which is connected to the main machine only by a wire. What a compact installation design it is! Due to the self-contained microphone on the main machine, the product is capable of accomplishing the duplex talk with the auxiliary unit.

The playback audio is vivid and clear. The internal and external sound volume can be adjusted separately by independent switch. With the microcomputer processing circuit, this windows visible intercom camera is able to reduce the noise and eliminate the problems of echo and howling sound. Configured with the recording jack, it can output 2 channels of sound signals from inside and outside, aiming to help the bank teller for recording.

Image sensor	1/3" Color SONY CCD
System	NTSC/PAL
Resolution	600TV Lines
Synchronization	2:1 Interlace
Scanning frequency	H: 15.734KHz, V: 6.0Hz / H:15.625kHz,V:50Hz
Synchronization	Internal/Line-Lock(AC 24V Only)
Min illumination	1.2Lux,
Gain Control	Max./ Typical / Min.
Gamma Characteristic	0.45/1 /Active mode 1/Active mode 2
White Balance	ATW / One PUSH/ USER- guided
Hide Region	8 Zones
Dynamic Range	X128
Electronic Shutter Control	1/60~1/100,000sec /1/50~1/100,000sec
Digital slow	OFF/ON(2X, 4X, 6X, 8X, 10X, 20X, 40X, 80X, 160X)
IR Interaction	OFF/ON (Videoc, CDS Sensor)
IR LED	OFF/ON (Videoc ,CDS Sensor)
Back light compensation	OFF/Bottom/Left/Right/Top/Center
Wide dynamic range	OFF/ON (Level adjustable)
Motion detecting	OFF/ON (Level control, Area setting)
Frame effects	B/W, Nega/Posi, H/V Mirror, Sharpness, Freeze
Flash methods	OFF/ON
Manual shutter	8 Step(1/60/50),1/100/120,1/250,1/500, 1/1k,1/2k,1/4k,1/10k
Power supply	DC 12V
Max. Power	< 10w
Operating Temperature	-10℃~+40℃
Operating Humidity	10%~+90% RH
Angle	90°
Size	200*70*25mm

Application Fields

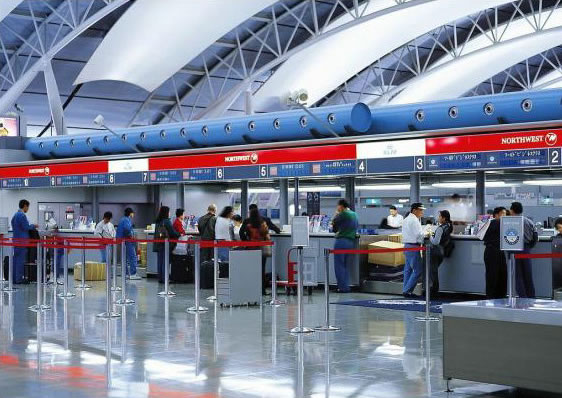

This windows visible intercom camera has a wide application range covering the hospital, post office, bank, checkout counter, tickets office, insurance corporation, securities company, train station and other places.
