Wireless Network Camera

DV-IPC02H (1.3mega)
Detailed Information
1.This DV-IPC02H wireless network camera performs with 1.3 megapixels video or image in the standard H.264 compression format with the frame rate of 30fps.
2. It can capture the 720P image. It means the resolution is 1280×720.
3. Apart from the embedded cloud operating system (icouldCam) that is researched and developed independently by us, this product also employs the internal IR cut filter that allows automatic switching.
4. It is available for working with the IEEE802.11b/g/n standard of wireless network.

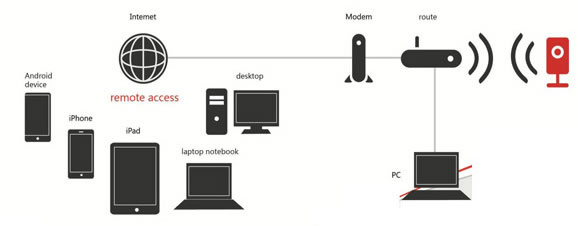

5. With the standard configuration of universal plug and play, this product is truly easy to install and use on mobile phone after scanning its QR code. It is suitable for viewing video surveillance via smart phones with the operation system of iphone, Android, Symbian, Windows CE, Blackberry, etc.
6. The wireless network camera offers automatic cruise in all directions because it is able to make a wide range of pan and tilt movement at 90 degree vertically and 270 degree horizontally.
7. Equipped with 10 IR LEDs in the diameter of 5mm, the product is able to capture the objects at the distance of 10m to 15m. It is also an excellent night vision camera.
8. The product is able to accomplish the alarm snapshot, alarm video storage, local storage in 32G SD card, motion detection, etc.
9. It is installed with the built-in microphone and speaker so as to support two-way audio function.

Model No.	DV-IPC02H (1.3 mega)
System Features	Flash Network Camera Management System	Flash Network Camera Management System: User can login the website, register account, add network camera, and then can also view the live streaming through web browser or mobile phone.
	CMS (Customer Management System) Monitor Client	1/4/9/16/25/36 Multi live view, device group manage, map view, recording, record playback and alarm manage.
	Other	Support Adobe Flash, Support all browsers (IE, Firefox, Safari and Google Chrome), Mobile: iPhone, Android, BlackBerry.
System	Operating system	Embedded Linux
	Processor	ARM9
Video	Codec	H.264
	Sensor	CMOS 1300,000pixels
	Frame rate	30fps
	Resolution	1280*720 (720P),VGA(640*480),QVGA(320*240)
	Image	Brightness, hue, contrast; support image flip, mirror function
	Lens	6mm
Pan/Tilt	Pan range	270
	Tilt range	90
Night Vision	Infrared LED	10 infrared LED, 15m
Audio	Codec	Speex
	Input	MIC
	Output	Speak
	AGC	AGC
Network	Ethernet	RJ-45 10/100Mbethernet interface
	Protocol	TCP/IP, UDP, HTTP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTP, RTSP, etc.
	Wifi	WIFI 802.11 b/g/n
Other	Environment	home
	Power	DC 5V 2A
	Temperature	-10~50 °C
	Humidity	20~80% RH
Alarm	Detection	Motion detection
	Alert	Email, FTP, CMS Client, Smart Phone

DV-IPC01 (0.3mega)
Detailed Information
1. This DV-IPC01 wireless network camera can output 0.3 megapixels image in standard H.264 compression format for 30 frames per second.
2. The resolution of the image is 640×480.
3. Our product also adopts the embedded cloud operating system (icouldCam), which is developed independently by us.
4. The built-in dual IR cut filters is capable of switching automatically.
5. The product can communicate with WIFI devices in the standard of IEEE802.11b/g/n without running network wires.
6. It is compatible with the operation systems of the smart phones for video surveillance, like iphone, Android, Symbian, Windows CE and Blackberry. This wireless network camera is easy for connecting to the mobile phone through scanning its QR code.
7. Due to the allowable pan and tilt rotation, it is able to complete automatic cruise in all directions. The maximum vertical rotation angle is 90 degree and the horizontal rotation range reaches up to 270 degree.
8. Our product is mounted with 10 IR LEDs in diameter of 5mm and the IR distance ranges from 10m to 15m. It shows a good performance on night vision.
9. The wireless network camera offers alarm snapshot, alarm video storage and local storage in 32G SD card.
10. It supports universal plug and play.
11. Aside from the motion detection, this product is also endowed with two-way audio function as it utilizes the internal microphone and speaker.

Model No.	DV-IPC01 (0.3mega)
System Feature	Flash Network Camera Manager Management	Flash Network Camera Management System: User can login the website, register account, add network camera, and then can also view the live streaming through web browser or mobile phone.
	CMS Monitor Client	1/4/9/16/25/36 Multi live view, device group manage, map view, recording, record playback and alarm manage.
	Other	Website using Adobe Flash Technology, support all browsers (IE, Firefox, Safari and Google Chrome), Mobile: support iPhone, Android, BlackBerry.
System	Operating system	Embedded Linux
	Processor	ARM9
Video	Codec	H.264
	Sensor	CMOS 300,000 pixels
	Frame rate	30fps
	Resolution	VGA(640*480), QVGA(320*240)
	Image	Brightness, hue, contrast; support image flip, mirror function
	Lens	6mm
Pan/Tilt	Pan range	355
	Tilt range	90
Night Vision	Infrared led	10 infrared LED, 15m
Audio	Codec	Speex
	Input	MIC
	Output	Speak
	AGC	AGC
Network	Ethernet	RJ-45 10/100Mbethernet interface
	Protocol	TCP/IP,UDP, HTTP, SMTP, FTP, DHCP, DNS, DDNS, NTP, UPNP, RTP, RTSP, etc.
	Wifi	WIFI 802.11 b/g/n
Other	Environment	home
	Power	DC 5V 2A
	Temperature	-10~50 °C
	Humidity	20~80% RH
Alarm	Detection	Motion detection
	Alert	Email, FTP, CMS Client, Smart Phone
