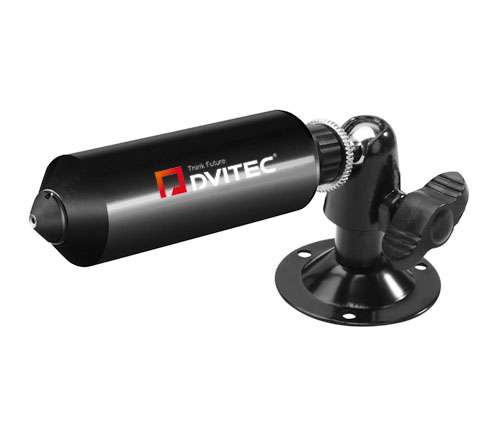

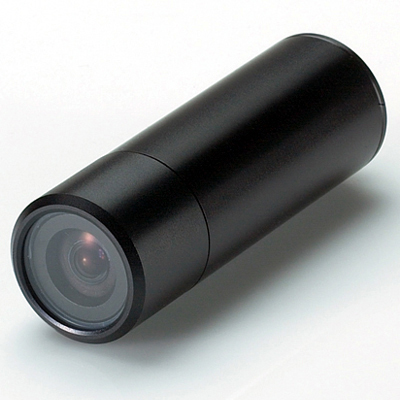

Mini Bullet Camera

The D-VITEC mini bullet security camera is used in sports sector. It is suitable for both indoor and outdoor applications. A 5V bullet security camera is also available.

Technical Specifications of Mini Bullet Camera

Picture Mini Square Camera Mini Square Camera Mini Square Camera Mini Square Camera
Model Number DV-223MC/
DV-223CP		 DV-221GH/
DV-221GHP		 DV-221VH/
DV-221VHP		 DV-219VH/
DV-219VHP
Image Sensor 1/3" SONY CCD
Picture Element NTSC: 510(H) x 492(V)
PAL: 500(H) x 582(V) 		NTSC: 976(H) X 494(V)
PAL: 976(H) X 582(V)		 PAL: 752(H) X 582(V);
NTSC: 768(H) X 494(V)
TV System NTSC /PAL
Scanning Frequency 15,734KHz(H), 59.94Hz(V) ; 15,625KHz(H), 50Hz(V)
Scanning System 2:1 interlace
Synchronization System Internal Sync
Resolution (Horizontal) 420TVL 650TVL 600TVL
Video Output 1Vpp, 75Ω Composite
S/N Ratio >48db (AGC-OFF) >50db (AGC-OFF)
Min. Illumination 0.5Lux 0.05Lux, F1.2 0.01Lux, F1.2
Auto Electronic Shutter 1/60 ~ 1/100,000 sec. 1/50 ~ 1/100,000 sec.
White Balance AUTO
DAY & NIGHT COLOR ONLY Support
Lens Board Lens: 2.97 /3.6/6mm;
Pinhole Lens: 3.7/2.5mm
Power Source DC 12V +- 10%
Ambient temp (-10°C ~+60°C) (-10°C ~+50°C)
Dimensions(MM) F23mm F21mm F21mm F19mm
Weight 200g 200g 200g 200g
