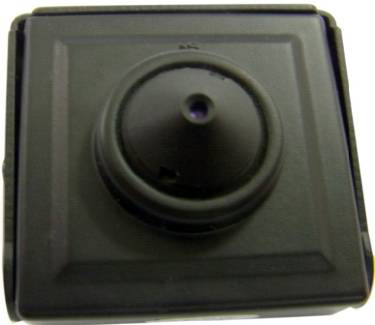

ATM USB Camera

The D-VITEC ATM USB CCTV camera is designed for use in bank ATM and POS systems.

Different from normal USB CCTV camera, our USB CCTV cameras are specially designed for industrial 24-hour surveillance. We have both CCD type and 2M pixel cmos type. True color image and low light performance are most important unsurpassable features.

Features
1.Our ATM USB camera is installed with the 1/3 inch CMOS sensor with 2 megapixels.
2. It works with automatic exposure and white balance.
3. This product is compatible with various operating systems, such as Windows 2003, Windows XP, Windows VISTA, Windows 7, Mac, Linux In 2.6.2 upgrading version and above.
5. It supports the secondary development of the software.
6. Our product is also mounted with the high speed USB 2.0 interface.
7. Configured with a 2.2m USB video cable to resist attenuation, the product meets different demands on installation.
8. This ATM USB camera is available for diversified output formats of video and image so that the storage space is saved effectively.
9. Passing the test of Microsoft, it has the functions of digital signing and face tracking.

Technical Specifications

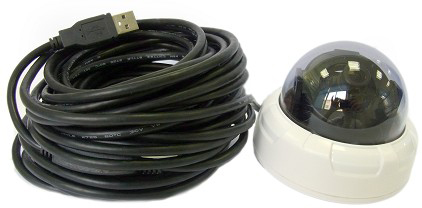

Model Number	DV-3034CU/ DV-3034CUP4	DV-3030CU/ DV-3030CUP4	DV-W3343CU-208 / DV-W3303CU-208	DV-U6904-208
Image Sensor	1/3.2" Micron CMOS (2.0 Megapixel)	1/4" OV CMOS (0.3 Megapixel)	1/3" CMOS	1/3.2" CMOS (2.0 Megapixel)
Resolution	1600×1200 pixels(UXGA); 1024×768 pixels(XGA); 800×600 pixels (SVGA; 640×480 pixels (VGA; 320×240 pixels(QVGA);	640×480(VGA); 320×240(QVGA); 176×144(CIF); 352×288; 160×120;	160x120, 156x144, 320x240, 352x288, 640x480, 1024x768, 1280x960	1600×1200 pixels(UXGA); 1024×768 pixels(XGA); 800×600 pixels (SVGA); 640×480 pixels(VGA); 320×240 pixels(QVGA);
System	Windows 2000; Windows XP; Windows VISTA; Windows 7; Linux (In 2.6.18 above the kernel version); Mac ps3	Windows 2000/XP; VISTA; Windows 7; Linux (In 2.6.2 above the kernel version)	Windows 2003; Windows XP; Windows VISTA; Windows 7; Mac ; Linux (In 2.6.2 above the kernel version)	Windows 2003; Windows XP; Windows VISTA; Windows 7; Mac ; Linux (In 2.6.2 above the kernel version)
Rate	VGA & QVGA 30 fps; XGA 15 fps; UXGA 8 fps	30 fps / 14fps	30fps max.	22fps
Image Processing	Auto light exposure control; Auto white balance control;	Auto light exposure control; Auto white balance control;	Auto light exposure control; Auto white balance control;	Auto light exposure control; Auto white balance control;

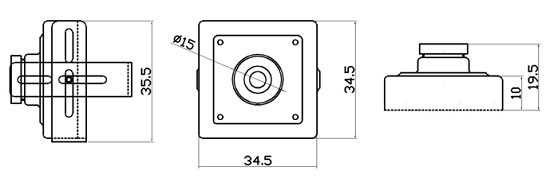

Dimension	34×34mm	30×30mm	34*34mm/30*30mm	F90(D)*67(H)mm
Operating Temperature	﹣10℃~﹢50℃	﹣10℃~﹢70℃	﹣10℃~﹢70℃	﹣10℃~﹢70℃
Storage Temperature	﹣20℃~+60℃ (Humidity: 0% RH ~ 85% RH)	﹣20℃~+60℃ (Humidity: 0% RH ~ 85% RH)	﹣20℃~+60℃ (Humidity: 0% RH ~ 85% RH)	﹣20℃~+60℃ (Humidity : 0% RH ~ 85% RH)
MTBF	130 thousand hours	130 thousand hours	130 thousand hours	130 thousand hours
Video output	USB 2.0	USB 2.0	USB 2.0	USB 2.0
Power Supply	USB 5V	USB 5V	USB 5V	USB 5V +/- 10%

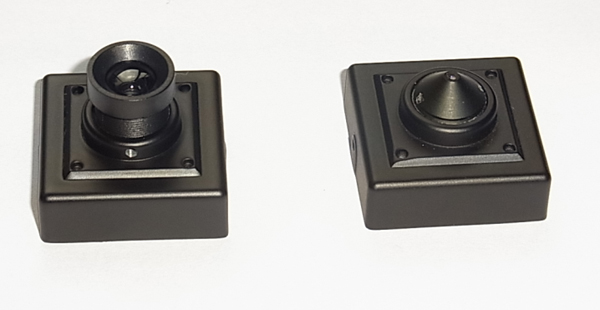

Focal length	Board Lens: 3.6mm, 6mm; Pinhole Lens: 2.8mm±5%;	Board Lens: 4.3mm; Pinhole Lens: 2.8mm, 3.7mm	2.8mm	2.8mm
Angular field or view	125°(2.8mm)/ 90°(3.6mm)/ 68°(6mm) (Diagonal Line)	55°(4.3mm)/ 125°(2.8mm)/ 60°(3.7mm) (Diagonal Line)	125° ±5°	125° ±5°
IRIS	FIX IRIS	FIX IRIS	FIX IRIS	FIX IRIS
This camera does not need to install the driver, as it supports plug and play. The default resolution while starting up is 640×480 pixels (VGA).
