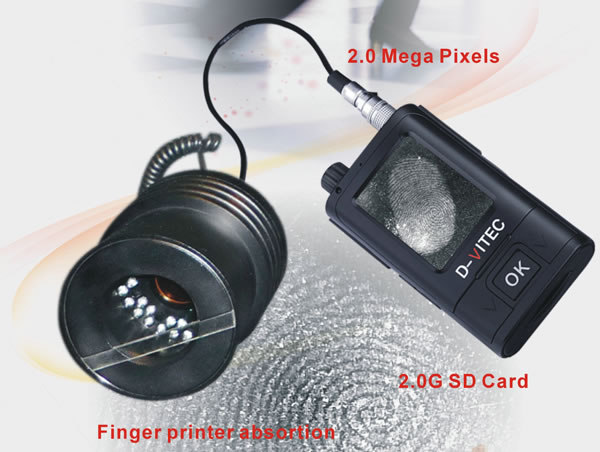

1. The D-VITEC fingerprint recognition device is compact, light, portable and hand-free
2. Reasonably designed, the fingerprint recognition device is easy to use, with both tracking and recording functions. Display and recording can be done synchronously
3. Specialized high quality LED, with lifetime up to 50,000 hours
4. Integrated control, three kinds of waves switched through one button
5. The fingerprint recognition device is energy efficient. The use of the built-in rechargeable Li battery removes the need for extra power source.

Parameters and Technical Indicators
Item Description
Function Taking video and photo, mobile hard disc
Image sensor 5 megapixels hardware CMOS with magnesium light
Video recording format HD format: 1280×720/24 frames
Stationary image recording format VGA: 640×480 (300,000 pixels)
1.3M: 1280×960(1.0 megapixel)
2M: 1600×1200 (2.0 megapixels)
3M: 2048×1536 (3.0 megapixels)
5M: 2560×1920 (5.0 megapixels)
8M: 3264×2448 (8.0 megapixels, increased by software)
12M: 4032×3024 (12 megapixels, increased by software)
Storage capacity of 2 GB SD expansion card (for images with different resolution) 500 photos (8.0 megapixels, 3264×2448)
670 photos (5.0 megapixels, 2560×1920)
1200 photos (3.0 megapixels, 2048×1536)
HD format 720P: 20 minutes
Available storage card type SD card/SDHC card Class4 or higher input speed, 16GB at maximum
Recording file format Video: MOV file, image: BMP file
Display screen 2.5inch, about 230.000 pixels, 100% display proportion, 16:9 widescreen LCD display (wide viewing angle and wide color gamut supported)
Lens 12mm (standard configuration)
Focal length range Focus 80mm~10mm
Playback zoom range 8X
Image playback form Single/Thumbnails
Time setting for auto turning off 1min/5min/Off
Switch setting Press the button for 3 seconds long
Size of image 12M/8M/5M/3M/2M/1.3M/VGA
ISO Auto /100/200/400/800
Brightness High /ordinary/low
Saturation High / ordinary /low
Sharpness Sharp/ordinary /soft
Time stamp Off/date /date and time,
Continuous shooting mode On/Off
Noise reduction On/Off
Standard light source Standard light source Waveband (nm) Power (W)
White 450~465 1
Green 518~520 0.7
Red 620~625 0.7
Blue 465~470 1
Purple 400~405 1.5
Exposure compensation range -1.0EV ~ +1/3 EV
USB port USB 2.0 high speed
AV output format NTSC/PAL
HDMI output version HDMI 1.2
Formatting On/Off
Beep On/Off
Language English, Simplified Chinese
System reset Cancel/Execute
Optical frequency 60Hz/50Hz
Input date setting Y/M/D/H/M/S
USB connectivity options USB2.0 removable storage
Battery function Time displayed all the time (RTC with uninterruptible power supply while turning off)
Encryption Picture encryption
Viewfinder cylinder Main frame
Material Aluminum alloy ABS+PC
Power supply 3.7V/1270mA 3.7V/1270mA
Power <3W <1.2W

D-VITEC is a China-based fingerprint recognition device manufacturer and supplier. We offer fingerprint recognition devices, 4 channel DVRs, WDR CCTV cameras and so on. Our high quality products are offered at competitive prices. We can supply the full chain of manufacturing box security cameras, car CCTV cameras, etc. right here in China. Our lower manufacturing cost can save your purchasing cost. More details on each of our products are shown on the description page.
