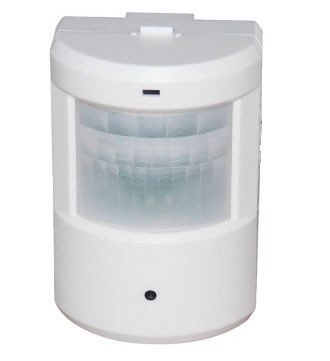

Passive Infrared Camera, PIR Camera

This passive infrared camera is designed with beautiful appearance and covert shape. It supports optional PAL or NTSC video output. Moreover, our product is available in various types for selection. The resolution ranges from 420TV lines to 700 TV lines and the illumination is in the scope of 0.5lux to 0.0002lux.

Our passive infrared camera is a continuous shooting product that utilizes the Sony color CCD camera and is activated by the PIR motion sensor. It can work as an accessory in the alarm system or as a stand-alone monitoring device. This product is a good choice for covert or hidden camera applications.

Pixels PAL: (H)500×(V)582 / NTSC: (H)510×(V)492
Scanning system PAL: (H)500×(V)582 / NTSC: (H)510×(V)492
Synchronization system Internal synchronization
Video output 1Vp-p 75Ω negative
White balance Auto
Automatic gain control (AGC) Support
Backlight compensation (BLC) Auto
S/N ratio More than 48dB
Gamma characteristic 0.45
Electronic shutter PAL:1/50s~1/100,000s, NTSC:1/60s~1/100,000s
Power consumption 12V±10%DC, 100mA
Operating temperature -10℃~+50℃
Storage temperature -20℃~+60℃
Built-in lens f: 3.7mm super pinhole lens
Dimension 15×6.5mm
Color White
Detective angle Horizontal:120º, Vertical:60º
Detective distance 8-10m
Alarm port Open/closed
