Speed Dome Camera

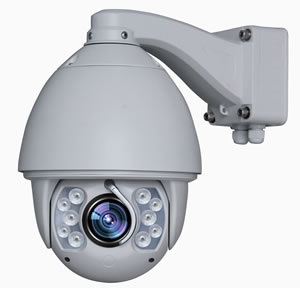

DV-MDR30VH-W 120m 650 TV Lines Infrared Variable Speed Dome Camera

Features
1. This DV-MDR30VH-W infrared variable speed dome camera is configured with 1/4 inch CCD image sensor.
2. It offers the colorful image with 650 TV lines of resolution.
3. This product supports 30X zoom.
4. It makes use of the array infrared lamp, whose projection distance is about 120m.
5. Due to the video content analysis technology for dimming, the product offers excellent infrared night vision.
6. With the central air duct, it works with outstanding heat dissipation and reliability.
7. By means of the menu, this infrared variable speed dome camera allows users to set the separate working power for infrared lamps related to the optimal zoom. It can detect the front voltage value and the ambient illumination of installation at real time.
8. Specially designed with the screen wiper, the product is available for working at all weather conditions.
9. Equipped with the outdoor power supply box for option, it is very convenient for installation.

Technical Specifications

Model	DV-MDR30VH-W
Name	120m 650 lines Infrared Variable Speed Dome Camera
Parameters
Pan rotation range	360º, (continuous range)
Pan rotation speed	0.5°~50°/s
Tilt rotation range	-5~90°, (automatic flip)
Tilt rotation speed	0.5°~50°/s
Preset positions	256 (Chinese title)
Automatic scanning	8 lines (the left and right boundaries and the scanning speed can be set.)
Automatic tour	8 lines (32 preset positions for each line)
Supply voltage	DC12V±10%
Operating temperature	-35ºC - +55ºC
Working humidity	<90%, without condensing
Maximum power	50w
Weight	3.2kg
Function
Screen wiper	Support
Outdoor power supply box	Support (optional)
Password protection	Support
Online upgrade	Support
Module inspection	Support
Alarm	7 input lines and 2 output lines (optional)
IP rating	IP66/secondary lightning protection，3000KV electric surge resistant design
OSD menu	In Chinese and English
Infrared lamp
Type	Dot-matrix infrared lamp
IR distance	120m
Video content analysis for dimming	Support
IR starting mode	Various (Auto/with camera/timing)
Parameter of camera unit
Model	W30B (Made in China)
Image sensor	1/4"CCD
Resolution	Color 650 TV lines
Zoom range	30X

DV-SDR30VH-W 120m 650 TV Lines Infrared Speed Dome Camera

Features
1. This DV-SDR30VH-W infrared speed dome camera adopts the 1/3 inch CCD image sensor.
2. It offers the colorful image with 650 TV lines of resolution.
3. This product supports 30X zoom.
4. It makes use of the array infrared lamp, whose projection distance is about 120m.
5. Due to the video content analysis technology for dimming, the product offers excellent infrared night vision.
6. With the central air duct, it works with outstanding heat dissipation and reliability.
7. By means of the menu, this infrared variable speed dome camera allows users to set the separate working power for infrared lamps related to the optimal zoom. It can detect the front voltage value and the ambient illumination of installation at real time.
8. Specially designed with the screen wiper, the product is available for working at all weather conditions.
9. Equipped with the outdoor power supply box for option, it is very convenient for installation.
10. Designed with wall mounting bracket and built-in power supply, this infrared speed dome cameral is convenient for on-site construction and maintenance.
11. There is also an optional outdoor power supply box so that it is easy for operators to do installation and debugging at site.

Technical Specifications

Model	DV-SDR30VH-W
Name	120m 650 lines Infrared Speed Dome Camera
Parameter
Pan rotation range	360º, (continuous range)
Pan rotation speed	0.01°~200°/s
Tilt rotation range	-5~90°, (automatic flip)
Tilt rotation speed	0.5°~200°/s
Preset positions	256 (Chinese title)
Automatic scanning	8 lines (the left and right boundaries and the scanning speed can be set.)
Automatic tour	8 lines (32 preset positions for each line)
Supply voltage	DC12V±10%
Operating temperature	-35ºC - +55ºC
Working humidity	<90%, without condensing
Power	50w at maximum
Weight	3.2kg
Function
Screen wiper	Support
Outdoor power supply box	Support (optional)
Password protection	Support
Online upgrade	Support
Module inspection	Support
Alarm	7 input lines and 2 output lines (optional)
IP rating	IP66/ secondary lightning protection, 3000KV electric surge resistant design
OSD menu	In Chinese and English
Infrared lamp
Type	Array infrared light
IR distance	120m
Video content analysis for dimming	Support
IR starting mode	Various (Auto/with camera/timing)
Parameter of camera unit
Type	W30D(Made in China)
Image sensor	1/3"CCD
Resolution	Color 650 TV lines
Zoom	30X

DV-SDR18HFH-W 180m 18X High-end Infrared Speed Dome Camera

Features
1. The DV-SDR18HFH-W high-end infrared speed dome camera uses the 1/3 inch CCD image sensor.
2. It presents the colored image with great clarity and 540 lines of resolution.
3. This product utilizes the 18X optical and 12X digital lenses. It looks elegant and beautiful for its special composite lenses.
4. It introduces the German Osram infrared lamp and the IR distance ranges from 150m to 180m. Aided with the video content analysis technology for dimming, the product shows distinctive night vision.
5. This infrared speed dome cameral employs the central air duct, ensuring excellent heat dissipation and reliable performance.
6. The special screen wiper guarantees the excellent performance of the product for any weather condition.
7. With the automatic tracking technology, this product is capable of identifying the target object and controlling the PTZ device and the lenses.
8. Suited for hanging quickly, it brings convenience for installation and maintenance.
9. Our product utilizes the graphical menu to make easier operation. Owing to the menu, users can set the operating power of the infrared lamp separately, which is relevant to the optimal zoom. They can detect the supply voltage at the front part and the ambient illumination value, too.
10. Designed with wall mounting bracket and built-in power supply, this infrared speed dome cameral is convenient for on-site construction and maintenance.
11. There is also an optional outdoor power supply box so that it is easy for operators to do installation and debugging at site.

Technical Specifications

Model	DV-SDR18HFH-W
Name	180m 18X high-end infrared speed dome camera
Parameter of camera
Type of camera unit	VK-S888EN (Hitachi)
Image sensor	1/3" CCD
Resolution	Color 540 TV lines
Zoom	18X optical, 12X digital
Focal length range	4.7-84.6mm
Viewing angle	54.7-3.1°
Parameter of dome camera
Pan rotation speed	0.01°~350°/s
Preset positions	256 (Chinese title)
Automatic tour	8 lines (32 preset positions for each line)
Mode route	4 lines (Every line has 500 commands at maximum)
Infrared lamp	10 Osram LEDs (composite lens)
IR distance	150-180m
IR power	Matched with zoom
Video content analysis for dimming	Support
Automatic tracking	Support
Ambient illumination detection	Support
Current detection	Support
Timing	Support (7 periods×7days)
OSD menu	Graphical menu
Quick hanging installation	Support
Screen wiper	Standard
Power supply box	Optional
Heat dissipation structure	Central air duct for dissipating heat
Supply voltage	DC12V±10%
IP rating	IP66/secondary lightning protection, 3000KV electric surge resistant design
Operating temperature	-35ºC-+55ºC
Working humidity	<90%, without condensing
Power	50w at maximum
Weight	3.2kg
Accessories	Wall mounting bracket, DC12V power supply, mounting screws of the camera, protective ropes for dome camera.
