Individual Soldier Equipment Camera

Individual Soldier Equipment Camera
Feedback Form

This specially designed and developed individual soldier equipment camera offers high definition image up to 480TV lines. Shaped with covert body, this product is highly integrated, light and easy for carrying. Due to the embedded system, it keeps steady, secure and reliable performance.

Our product is widely applied in emergency handling, on-site investigation, patrol, obtaining criminal evidence, capturing escaping and smuggling criminals, military and police investigation, secret visit of reporter, wireless command, earthquake rescue, remote claims, live broadcasting of games, truism and entertainment and other important applications. This individual soldier equipment camera supplies the firsthand information of remote command for the decision maker.

Model NumberDV-S2020CHP1
Image SensorColor CMOS 1/4
Effective PixelsNTSC output 720H x 480VPAL output 720H x 576V
Scanning SystemPAL
Minimum illumination1.0LUX
Gamma Characteristic0.45
White BalanceAuto
Signal to Noise Ratio>45dB
Operating Temperature-10℃~+50℃
Video Output1.0Vp-p, 75-OHM
Output TerminalDIY cable with RCA-Female for Video, DC Jack for Power
Power Supply+5V DC
Lens OptionsButton type pinhole lens

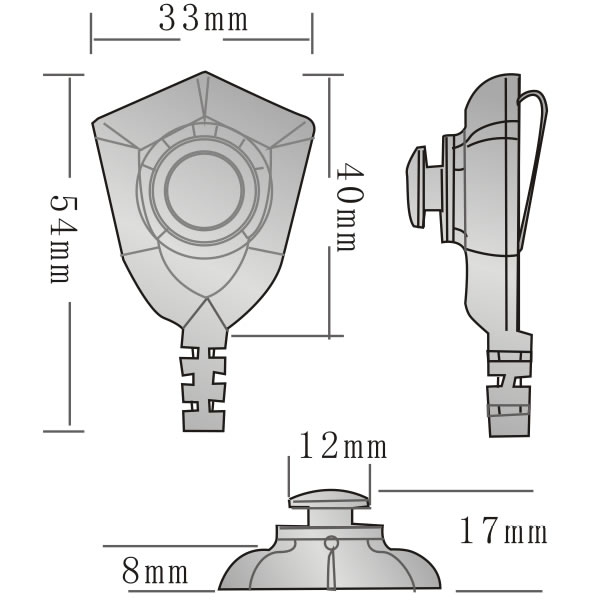

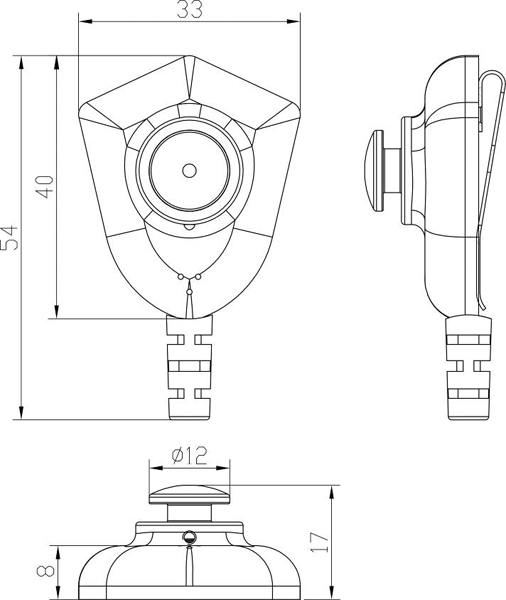

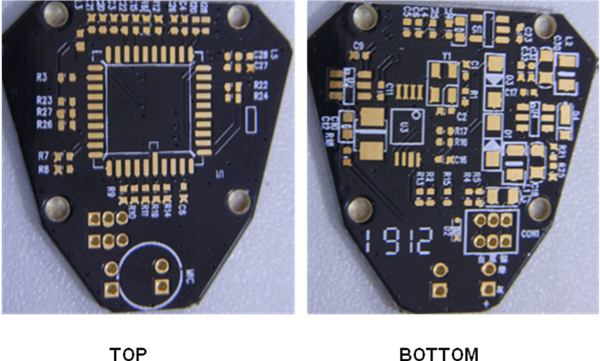

Drawing Main Board
