WDR Camera

This product has been discontinued and removed from our shelves.

Features
1. WDR (Wide Dynamic Range)
WDR technology makes it possible for our CCTV camera to provide clear images even under back light circumstances. WDR allows the capture and display of bright and dark areas in the same frame, so there are details in dark areas and the bright areas are not saturated.
2. Day/Night
In low lighting conditions, the CCTV camera delivers black and white images, instead of color images.
3. Auto/Manual, ATW, BLC
4. Privacy Zone Masking
It helps protect personal privacy by concealing private areas in the CCTV camera's field of view. The location and size of privacy masking zone is based on the user's specific requirements.
5. The WDR CCTV camera can be used for a variety of applications in many areas.

Technical Specifications of WDR Camera

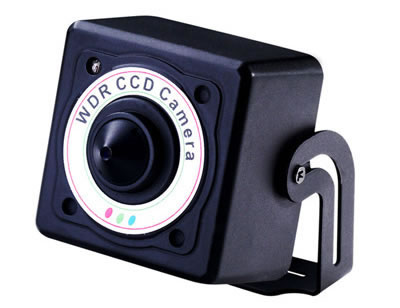

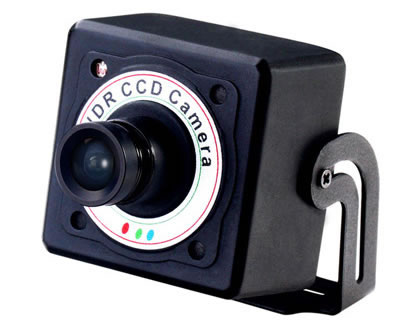

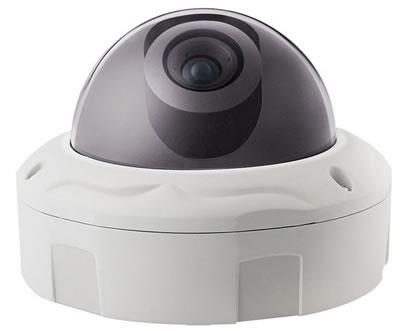

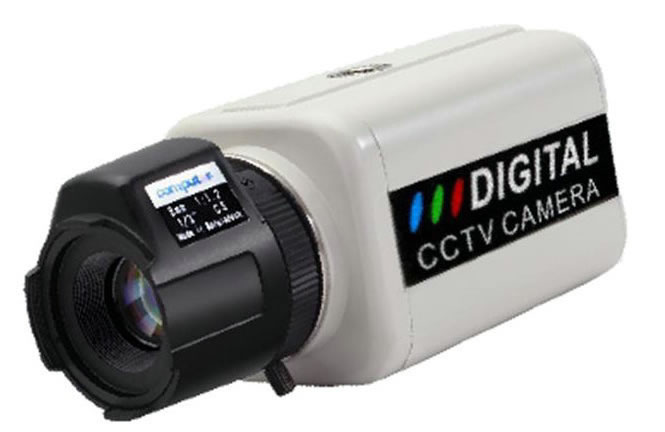

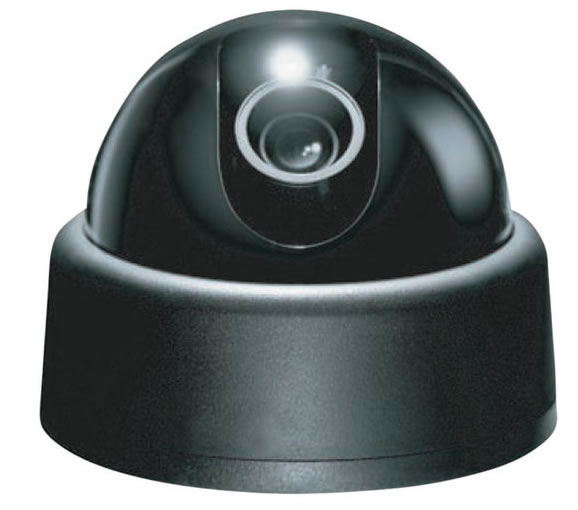

Picture WDR Camera WDR Camera WDR Camera WDR Camera WDR Camera WDR Camera
Model Number DV-W3034CHP4 DV-W3042CH DV-W3042CHP4 DV-W4460CH DV-W8510CH-EF DV-W680CH-EF
Image Sensor 1/3" SONY WDR CCD 1/3 SONY SS3 CCD 1/3 SONY SS3 CCD 1/3 SONY SS3 CCD 1/3 SONY EFFIO 1/3 SONY EFFIO
Picture Element 768(H) X 494(V) NTSC; 752(H) X 582(V) PAL
TV System NTSC /PAL
Scanning Frequency 15,734KHz(H), 59,94Hz(V) ; 15,625KHz(H), 50Hz(V)
Scanning System 2:1 interlace
Synchronization System Internal Sync / LINE LOCK (OPTION)
Resolution (Horizontal) 600TV Lines 550TVLINES 550TVLINES 550TVLINES 650TVLINES 650TVLINES
Video Output 1Vpp 75ohm Composite
S/N Ratio More Than 52db (AGC-OFF)
Min. Illumination 0.0001Lux (20 IRE)
Auto Electronic Shutter 1/60 ~ 1/100,000 sec. 1/50 ~ 1/100,000 sec. ADJUSTABLE
Auto White Balance ATW/AWC/Manual Selectable
WDR MAX 120dB MAX 128dB MAX x512
DNR OFF/ON N.G OFF/2DNR/3DNR
DAY & NIGHT Color/BW/Auto Selectable
Lens PINHOLE 3.7/2.5MM BOARD 2.97/3.6/6MM PINHOLE 3.7/2.5MM CS mount W/O LENS 2.8-11MM AUTO IRIS 2.8-11MM AUTO IRIS
Motion Detection Off/On (Area / Sensitivity)
Privacy Zone Off/On (AREA SELECTABLE)
OSD Language Multi
BLC ON-OFF Selectable
Power Source DC 12V +- 10%
Power Consumption DC 12V 120MA DC 12V 150MA DC 12V 150MA DC 12V 300MA DC 12V 250MA DC 12V 300MA
Ambient Temp (-10℃ ~+60℃) (-10℃ ~+60℃) (-10℃ ~+60℃) (-10℃ ~+60℃) (-10℃~+60℃) (-10℃~+60℃)
Dimensions(MM) 34*34MM 42*42MM 42*42MM 63(W)*65(H)*135(L) F120*100 124 (D) X 100 (H)
Weight 0.25KG 0.3KG 0.3KG 0.5KG 1.25KG 0.7KG
