IR Dome Camera

This product has been discontinued and removed from our shelves.

Our IR dome CCTV cameras can satisfy different requirement for IR range in home and office surveillance. The CCTV cameras can be used during both daytime and nighttime, with high quality and easy installation. Our CCTV cameras range is from normal resolution 420tvl up to 650 TVL.

Technical Specifications of IR Dome Camera

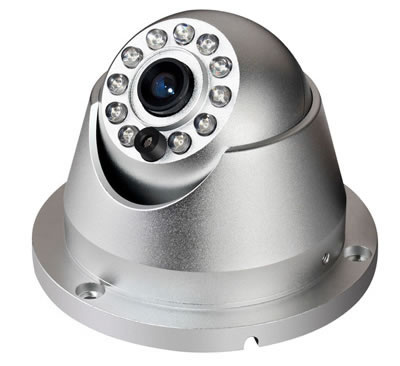

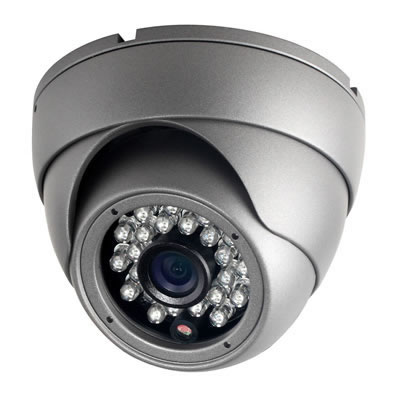

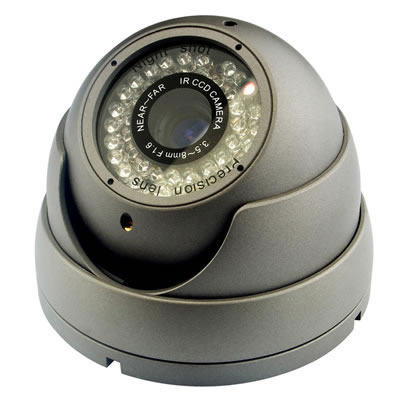

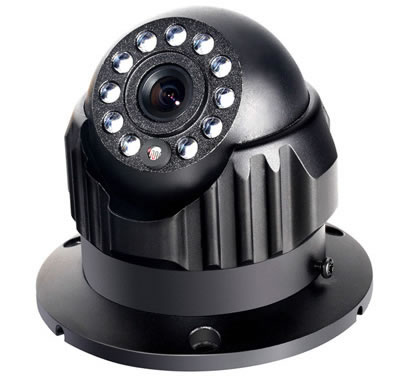

Picture IR Dome Camera IR Dome Camera IR Dome Camera IR Dome Camera
Model Number DV-IR8110CW DV-IR8110CTW DV--DIR7710C DV-DIR6610C DV-IR8110CVW DV-IR8110CVVHW
Image Sensor 1/3" SONY CCD
Picture Element 510(H) x 492(V) NTSC; 500(H) x 582(V) PAL 768(H) X 494(V) NTSC; 752(H) X 582(V) PAL 510(H) x 492(V) NTSC; 500(H) x 582(V) PAL 768(H) X 494(V) NTSC; 752(H) X 582(V) PAL
TV System NTSC /PAL
Scanning Frequency 15,734KHz(H), 59,94Hz(V) ; 15,625KHz(H), 50Hz(V)
Scanning System 2:1 interlace
Synchronization System Internal Sync
Resolution (Horizontal) 420TVL 600TVL 420TVL 420TVL 550TVL
Video Output 1Vpp 75ohm Composite
S/N Ratio More Than 48db (AGC-OFF)
Min. Illumination 0LUX
Auto Electronic Shutter 1/60 ~ 1/100,000 sec. 1/50 ~ 1/100,000 sec.
White Balance AUTO
IR LED 24PCS 11PCS 42PCS 42PCS
Lens BOARD LENS 2.97/3.6/6MM BOARD LENS 3.6/6MM 3.5-8MM MANNUAL 3.5-8MM MANNUAL
Power Source DC 12V +- 10%
Power Consumption DC 12V 280MA DC 12V 200MA DC 12V 400MA DC 12V 400MA
Ambient Temp (-10℃ ~+60℃) (-10℃ ~+60℃) (-10℃ ~+60℃) (-10℃ ~+60℃) (-10℃ ~+60℃)
Dimensions(MM) F93*87MM F88*70.5 F120*100 F120*100
Weight of IR Dome Camera 0.6KG 0.6KG 0.5KG 1.1KG 1.1KG
