HD-SDI Transmitter and HD-SDI Receiver

HD-SDI Transmitter and HD-SDI Receiver
Feedback Form

Characteristics

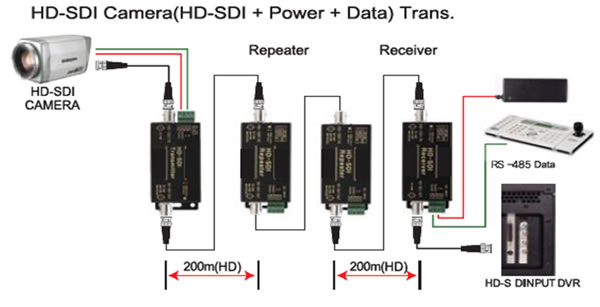

1. This HD-SDI transmitter is able to deliver the SDI signals up to 200m for 1.485G hard disc and to 130m for 2.97G full hard disc over one RG-6 coaxial cable by using the DV-HLR01D repeater that extends the transmission distance.
2. The HD-SDI receiver supports half duplex bi-directional RS-485 data communication.
3. Free of the power or RS-485 data wiring for the camera or the repeater in the middle, our product saves about 30% to 50% cost on installation.
4. With the DV-HTP0601D down converter under DC 48V to DC 12V and DV-HRP0601D PoC power combiner, the megapixel camera will get 6W power for consumption at maximum.
5. Our HD-SDI transmitter and HD-SDI receiver can get automatic diagnosis for the cable status and safe power supply, as well as surge protection function.

Technical Parameters of HD-SDI Transmitter

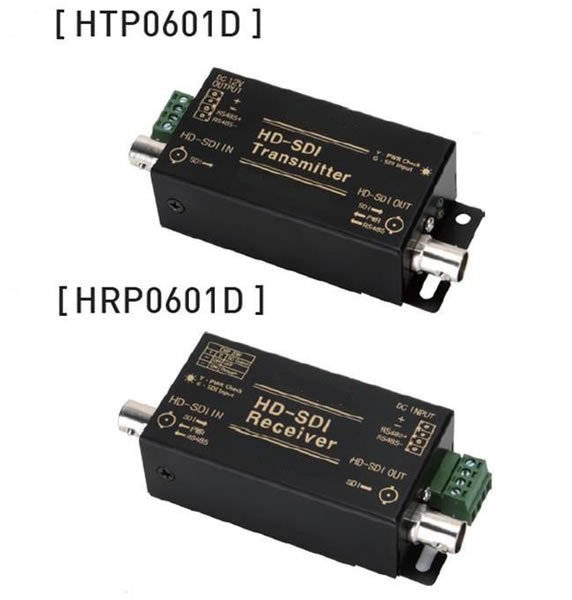

Model DV-HTP0601D (transmitter)
Video in/out HD-SDI
Input power COAX DC 24~48V(VP DC48V in)
Power consumption DC48V 25mA
Max. transmission distance (input signal) Belden 1694A 10m (Full HD)
5C-HFBT 10m (HD)
Max. transmission distance (output signal) Belden 1694A 120m (Full HD)
5C-HFBT 200m (HD)
Output power DC12/0.5A (6W)
Connection port SDI in/output BNC-F(75Ω)
Output power 2Pin (Out of 4P) T. Block
Data output 2Pin (Out of 4P) T. Block
Data communication method RS-485/Simplex
Baud rate 2400 / 4800 / 9600 / 19200 / 38400
LED SDI Green On: Receiving
Power Yellow On: Working/Flickering: Checking
Temperature / Humidity -10ºC ~ +50ºC/0 ~ 80%
Case body / Weight Aluminum/100g
Dimensions 76(W) × 42(H) × 24(D)mm
Technical Parameters of HD-SDI Receiver
Model DV-HRP0601D (receiver)
Video in/out HD-SDI
Input power DC 12V~48V, When using VP function(DC 48V 1.04A)
Power consumption DC 48V 8mA
Max. transmission distance (RG-6) Belden 1694A 120m(Full HD)
SC-HFB 200m(HD)
Bandwidth 270Mbps ~ 3Gbps
Connection port SDI in/out BNC-F(75Ω)
DIP SW 1 2 DC output
- OFF OFF
- ON Through
Data output 2 Pin (Out of 4P) T. Block
Input power 2 Pin (Out of 4P) T. Block
Data communication method RS-485/Half duplex
Baud rate 2400/4800/9600/19200/38400 bits/s
LED SDI Green On: Receiving
Power Yellow On: Working/Flickering: Checking
Temperature/Humidity -10ºC ~ +50ºC/0 ~ 80%
Housing/Weight Aluminum/100g
Dimension(mm) 76(W)×42(H)×24(D)mm
