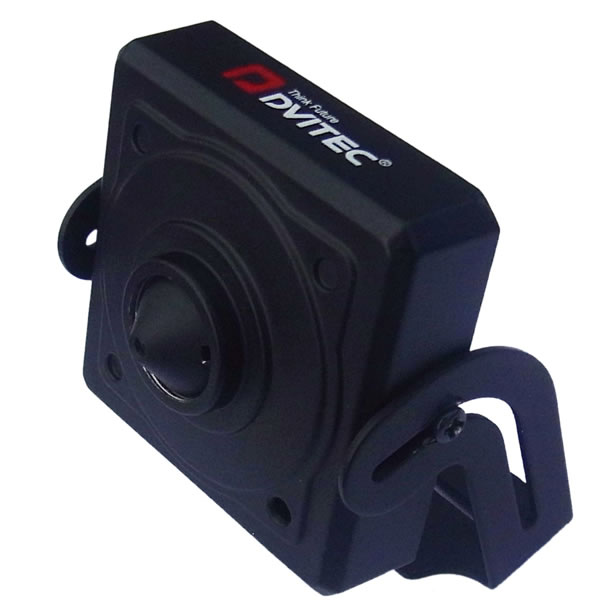

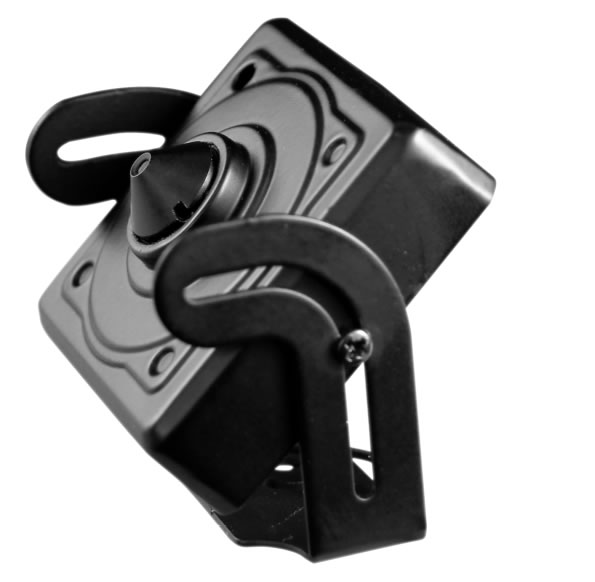

This DV-HD3424P SDI miniature camera is a kind of digital 1080P high definition pinhole camera. Benefiting from the HD-SDI technology, it offers excellent real time video. Easy as the analog camera for operation, this product presents the 1080P high definition image.

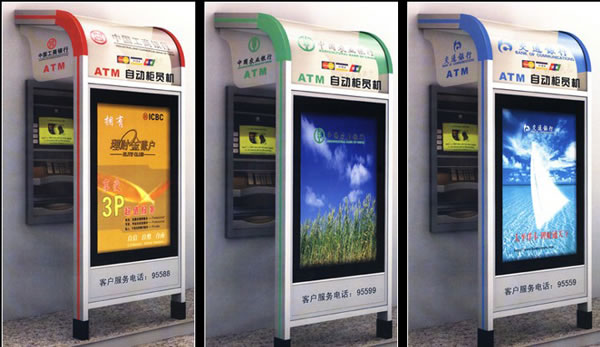

Configured with the Panasonic high sensitivity CMOS sensor and 4.3mm megapixel high definition lens with wide angle, this camera has a good performance with large monitoring range. Due to the spacing saving body, this product is convenient for applying in various monitoring occasions, like on the ATM machine, in the army, prison, etc.

Features
1. This SDI miniature camera supports the HD-SDI video signals output in accordance with the SMPTE292M standard.
2. It offers extremely low illumination and 3D digital noise reduction.
3. This product is characterized by digital WDR function, backlight compensation function and fog penetration function.
4. It supplies 96X digital zoom.
5. Our product also has some other auxiliary functions, such as privacy masking, motion detection, etc.

Parameters
Model DV-HD3424P
Image sensor 1/2.8 inch Panasonic progressive scanning CMOS with high sensitivity
Total pixels 2010(H)×1108(V)
Active pixels 1920(H)×1080(V)
Lens 4.3mm megapixel HD lens (3.7mm optional)
Resolution 1000 TV lines
Min. illumination Color 0.2lux, black and white 0.01lux
Shutter Automatic 1/25s ~1/3000s
Frame integration Automatic (×4 at maximum)
SN ratio 50dB
Backlight mode WDR, backlight compensation (digital WDR)
Digital noise reduction 3D digital noise reduction
Digital zoom 96X
Privacy mask 32 zones
Motion detection Yes
OSD Yes (drive by wire)
Video output HD-SDI/CVBS
Power supply DV12V
Power consumption 2w at maximum
Working temperature -10ºC ~ +50ºC
Working humidity 90%RH at maximum

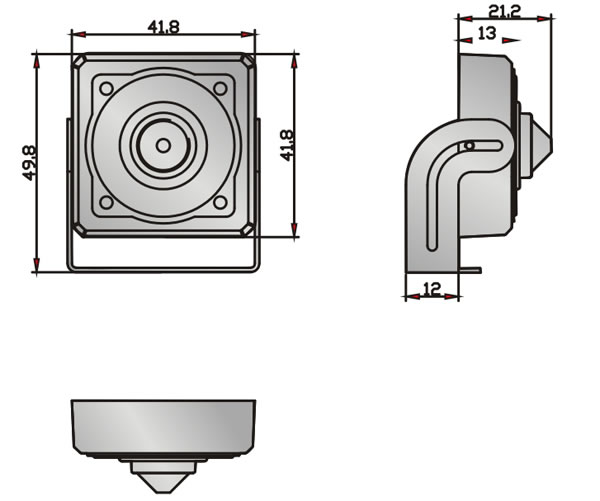

Dimension 42×42×34mm
Weight 220g

Welcome to visit our website. D-vitec Industrial is a professional manufacturer of CCTV camera with over ten years of experience. Agents at different levels are sincerely invited for cooperation. We also provide OEM service, by the way. Any questions, contact us please.
