SDI Dome Camera

Features
1. This SDI dome camera achieves the 1080P real time image through the output of HD-SDI video signals in accordance with the SMPTE292M and SMPTE424M standards.
2. It performs with extremely low illumination, 3D digital noise reduction function, digital WDR technology, back light compensation function and fog penetration function.
3. There are also some other auxiliary functions, like privacy masking, motion detection, etc.
4. This product allows 96X digital zoom.

1080P HD-SDI Mini Dome Camera

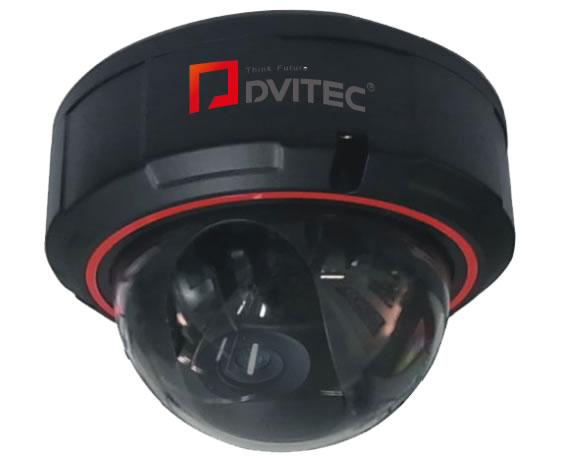

1. Description of Model DV-HD6164
This DV-HD6164 HD-SDI mini dome camera utilizes the HD-SDI technology to get the real time 1080P image with high definition. Yet it is easy for operating same as the analog camera.

With the Panasonic progressive scanning 2.0 megapixels CMOS with high sensitivity chip, the product is featured by, excellent low illumination performance and outstanding image effect. It is configured with the 3.3mm to 12mm 3.0 megapixels ICR lens, giving much consideration to the field angle and remote viewing distance. This SDI dome camera is convenient for using at financial institution, army, prison and various monitoring places.

Parameters of DV-HD6164

Model	DV-HD6164
Image sensor	1/2.8 inch Panasonic progressive scanning CMOS with high sensitivity
Total pixels	2010(H) ×1108(V)
Active pixels	1920(H) ×1080(V)
Lens	3.3-12mm 3.0 megapixels ICR lens
Resolution	1000 TV lines
Min. illumination	Color 0.2lux, black and white 0.01lux
Shutter	Automatic 1/25s ~1/3000s
Frame integration	Automatic (×4 at maximum)
SN ratio	50dB
Backlight mode	WDR, backlight compensation (digital WDR)
Digital noise reduction	3D digital noise reduction
Digital zoom	96X
Privacy mask	32 zones
Motion detection	Yes
OSD	Yes
Video output	HD-SDI/CVBS
Input voltage	DV12V
Power consumption	2w at maximum
Operating temperature	-10ºC ~ +50ºC
Working humidity	90%RH at maximum

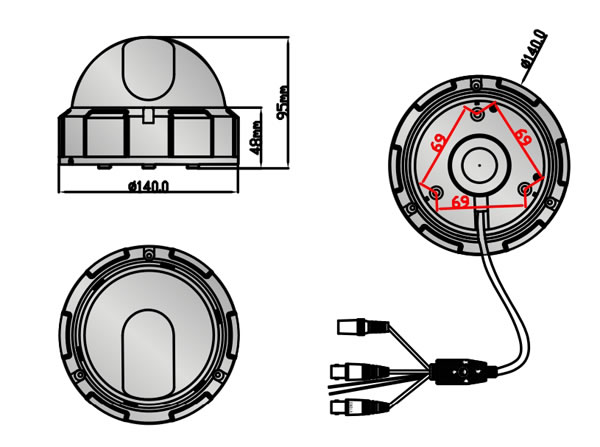

Dimension	Ф140×95mm
Weight	210g

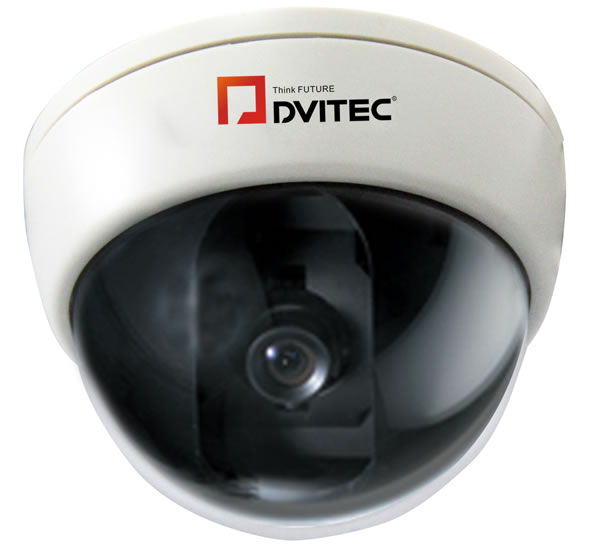

2. Description of Model DV-HD6954
The DV-HD6954 HD-SDI mini dome camera is able to capture 1080P image with high clarity at real time for it makes full use of the HD-SDI technology. Installed with the Panasonic 2.0 megapixels CMOS sensor, the product presents excellent image effect at low lighting conditions.

Apart from the light compensation function at lens edge and other special functions, it also has small and exquisite appearance. This product is easy for hiding. Mounted with the 2.8mm lens with super wide field angle, the mini dome camera is available in different surveillance situations.

Parameters of DV-HD6954

Model	DV-HD6954
Image sensor	1/2.8 inch Panasonic progressive scanning CMOS with high sensitivity
Total pixels	2010(H)×1108(V)
Active pixels	1920(H)×1080(V)
Lens	2.8mm 3.0 megapixels lens
Resolution	1100 TV lines
Min. illumination	Color 0.2lux, black and white 0.01lux
Shutter	Automatic 1/25s ~1/3000s
Frame integration	Automatic (×4 at maximum)
SN ratio	50dB
Backlight mode	WDR, backlight compensation (digital WDR)
Digital noise reduction	3D digital noise reduction
Digital zoom	96X
Privacy mask	32 zones
Motion detection	Yes
OSD	Yes
Video output	HD-SDI/CVBS
Input voltage	DV12V
Power consumption	2w at maximum
Operating temperature	-10ºC ~ +50ºC
Working humidity	90%RH at maximum

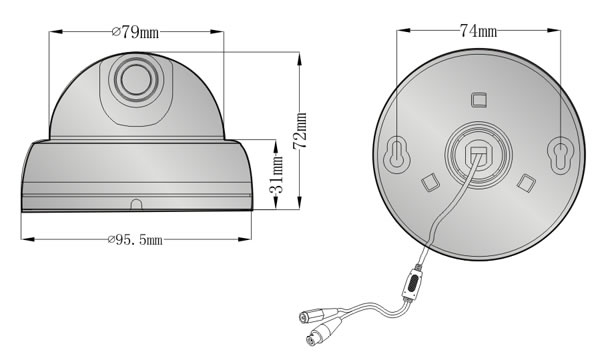

Dimension	Ф95.5×72mm
Weight	168g

1080P HD-SDI Explosion Resistant Dome Camera

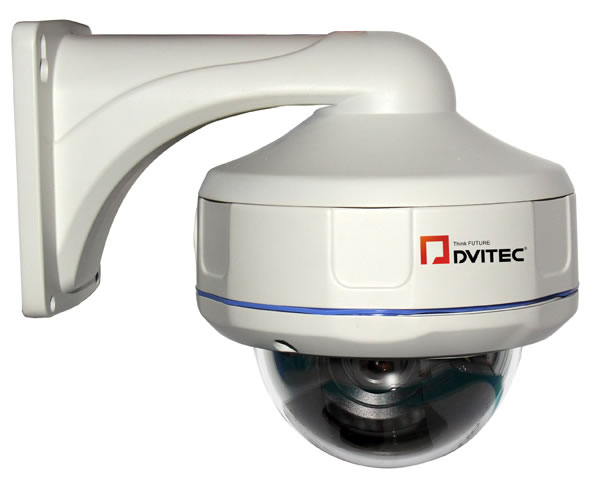

Description of Model DV-HD8144
With the HD-SDI technology, this DV-HD8144 explosion resistant dome camera is easy to achieve the real-time 1080P high definition image under simple operation. Equipped with the progressive scanning 2.0 megapixels CMOS chip with high sensitivity, the product is featured by low illumination performance, 3D digital noise reduction function, superior image effect and other strong points. To mention especially, it adopts the explosion resistant housing and it is very suited for working at the places that have high requirement on surveillance.

Parameters of DV-HD8144

Model	DV-HD8144
Image sensor	1/2.8 inch Panasonic progressive scanning CMOS with high sensitivity
Total pixels	2010(H)×1108(V)
Active pixels	1920(H)×1080(V)
Lens	3.3-12mm 3.0 megapixels ICR lens
Resolution	1100 TV lines
Min. illumination	Color 0.2lux, black and white 0.01lux
Shutter	Automatic 1/25s ~1/3000s
Frame integration	Automatic (×4 at maximum)
SN ratio	50dB
Backlight mode	WDR, backlight compensation (digital WDR)
Digital noise reduction	3D digital noise reduction
Digital zoom	96X
Privacy mask	32 zones
Motion detection	Yes
OSD	Yes
Video output	HD-SDI/CVBS
Input voltage	DV12V
Power consumption	2w at maximum
Operating temperature	-10ºC ~ +50ºC
Working humidity	90%RH at maximum

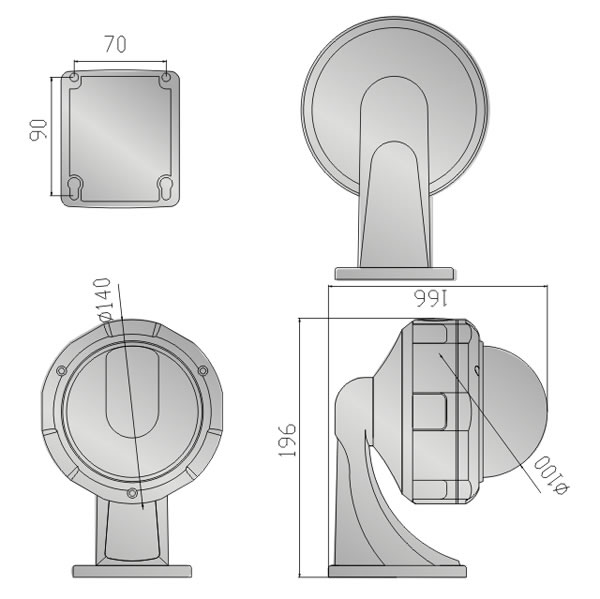

Dimension	196×166mm
Weight	650g

1080P HD-SDI IR Weatherproof Dome Camera

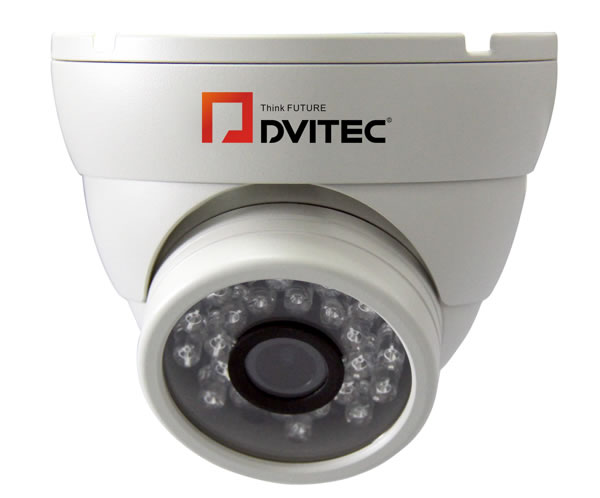

Description of Model DV-HD8934
This DV-HD8934 IR weatherproof dome camera is a good application of HD-SDI technology. Easy for operation same as the analog camera, however, this product can get real time 1080P distinct image. With the high sensitivity 2.0 megapixels CMOS chip, the product incorporates such features as splendid low illumination property, 3D digital noise reduction function, wide dynamic range, light compensation of lens edge and other particular functions.

This IR weatherproof dome camera performs with outstanding image effect. Mounted with 23 infrared LEDs, the product can realize IR monitoring for the objects within 15m. Owing to the internal dual infrared cut filters, it exerts true color representation of image in day time. Our product is applicable for various occasions that have high requirement on night vision surveillance, such as financial institution, army, prison, etc.

Parameters of DV-HD8934

Model	DV-HD8934
Image sensor	1/2.8 inch Panasonic progressive scanning CMOS with high sensitivity
Total pixels	2010(H)×1108(V)
Active pixels	1920(H)×1080(V)
Lens	3.6mm megapixel lens
Resolution	1100 TV lines
Min. illumination	Color 0.2lux, black and white 0.01lux
Infrared lamp	23 LEDs, with 15m IR distance
Shutter	Automatic 1/25s ~1/3000s
Frame integration	Automatic (×4 at maximum)
SN ratio	50dB
Backlight mode	WDR, backlight compensation (digital WDR)
Digital noise reduction	3D digital noise reduction
Digital zoom	96X
Privacy mask	32 zones
Motion detection	Yes
OSD	Yes
Video output	HD-SDI/CVBS
Input voltage	DV12V
Power consumption	2w at maximum
Operating temperature	-10ºC ~ +50ºC
Working humidity	90%RH at maximum

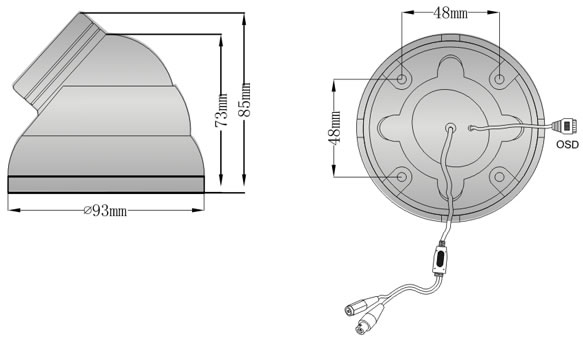

Dimension	Ф93×85mm
Weight	358g
